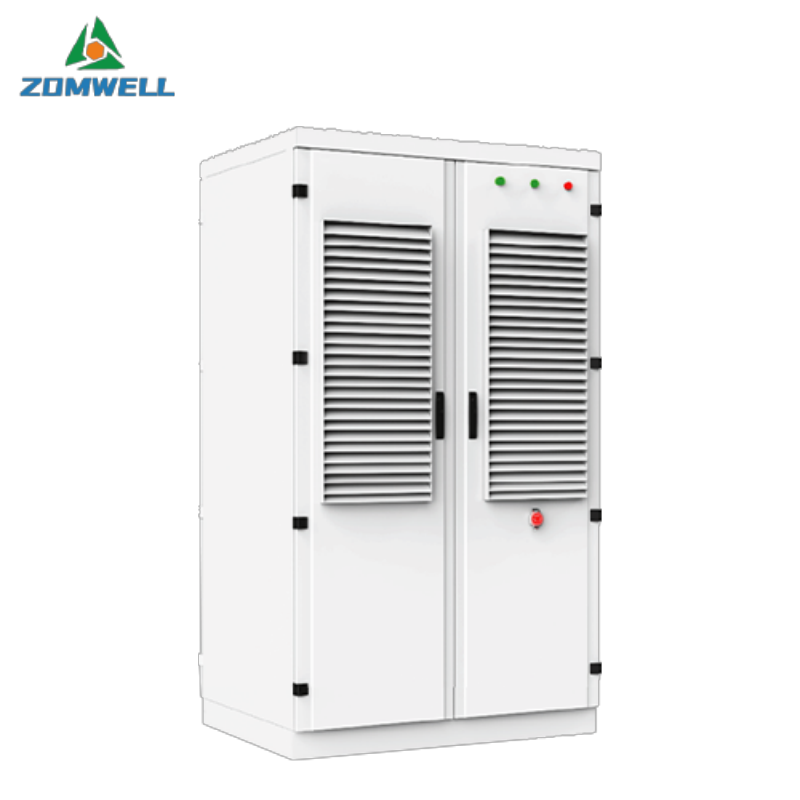

High Voltage DC Converter For Commercial And Industrial Use
Zomwell's industrial-grade DC Converter, designed for heavy-duty power tasks, is a standout in commercial DC power conversion solutions. It features consistent dual-rated voltages, efficient high-voltage operation, and independent module functionality for 99% system availability. This converter excels in smart collaboration with 4 MPPT access points and compatibility with 1500V storage and photovoltaic systems, ensuring safety through multiple controls and protections.
- ZOMWELL
- China
- Information
Products Features
Bi-directional rated voltage is the same, wide range of voltage operation 1500V DC high voltage, reducing costs and increasing efficiency.
Each module operates independently, with 99% system on-line rate; unique multi-branch access design avoids direct parallel connection of battery clusters, effectively solving the problem of circulating current.
Provides 4-way MPPT access, compatible with 1500V storage battery system configuration, compatible with 1500V PV system configuration.
Support linkage with BMS, EMS; system multi-branch control, multiple protection.
| Model | ZWS1-750K-H |
| DC Parameter | |
| Rated power | 750kW |
| Maximum power | 825kW |
| DC side voltage range | 500~1 500V |
| Number of DC side branches | 1/2/4 |
| Maximum current on the DC side | 825/413/207A |
| BUS side voltage range | 500~1500V |
| Number of BUS side branches | 1 |
| Maximum current on the BUS side | 825A |
| Number of modules | 8 |
| System parameters | |
| Maximum Conversion Efficiency (MCE) | 99% |
| Dimensions (W x H x D) | 1200x2100x970 mm |
| weights | 850kg |
| noise | < 85dB |
| Protection level | IP54 |
| Allowable ambient temperature | -40~55*C (Derating greater than 45°C) |
| Cooling method | air cooling |
| Allowable relative humidity | 0~95% (condensationless) |
| Allowable altitude | 3000m(Greater than 3000m derating) |
| Communication parameters | |
| communication interface | RS 485, Ethernet, CAN |
| communication protocols | Modbus TCP/RTU |
| BMS Access | Support |
